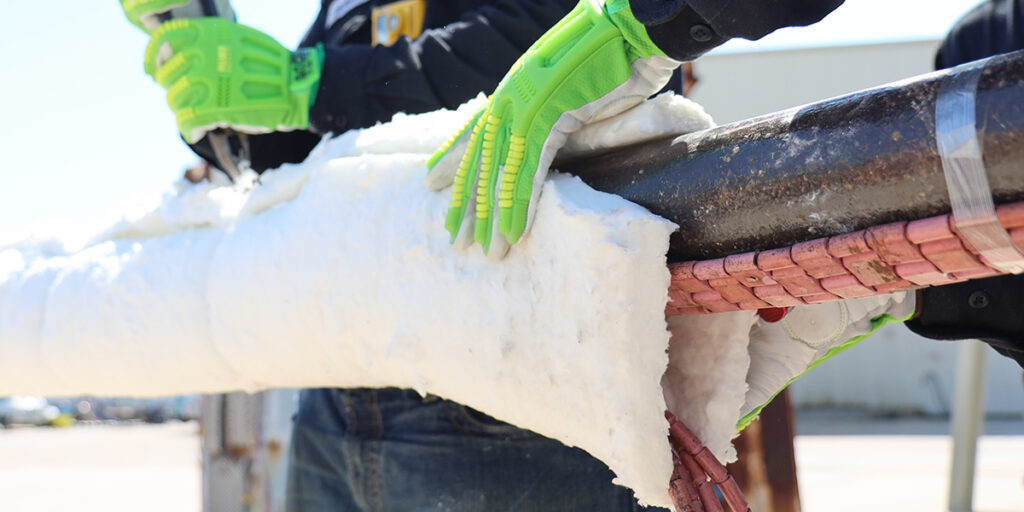

Understanding Post-Weld Heat Treatment (PWHT)’s Role in and Longevity

Post-Weld Heat Treatment (PWHT) is more than just a step in the welding process—it’s the key to unlocking the strength, durability, and performance your welded components need to thrive in demanding environments. While welding creates essential bonds between metals, it also introduces internal stresses and alters the microstructure of the material, which can weaken the weld and jeopardize the integrity of the entire project. PWHT post-weld heat treatment tackles these challenges head-on, relieving stress, refining metal structure, and enhancing mechanical properties to deliver lasting reliability.

But achieving exceptional results from PWHT heat treatment takes more than just the right equipment—it requires expertise and precision. That’s where TEAM comes in. With cutting-edge technology, a highly skilled team of engineers solutions for every project, and half a decade of experience helping our clients meet the most rigorous industry requirements. From solution annealing of stainless steel to expansion heating and material stabilization, Team’s heat treatment services optimize material quality, extend service life, and keep operations running seamlessly.

Why is heat treatment required after welding?

Welding involves the fusion of materials through intense localized heat, which creates areas of high thermal gradients. These thermal effects can result in significant changes to the material properties, leading to stress concentrations, distortion, and potential weaknesses in the welded joint. Heat treatment after welding mitigates these effects, ensuring that welded joints achieve optimal performance for their application.

1. Stress Relief

During welding, rapid heating and cooling create residual stresses within the material. These stresses can compromise the structural integrity of the welded component, increasing the risk of cracking, deformation, or failure under load. Post weld heat treatment reduces these residual stresses by promoting uniform thermal expansion and contraction, allowing the material to return to a more stable and relaxed state.

2. Prevention of Hydrogen-Induced Cracking

Hydrogen atoms, often introduced during welding through sources like moisture, contaminants, or shielding gases, can diffuse into the weld, posing a serious risk to its integrity. This diffusion can lead to embrittlement and result in hydrogen-induced cracking (HIC), a critical issue particularly in high-strength or thick materials. PWHT post-weld heat treatment, particularly techniques like hydrogen bake-out, allows trapped hydrogen to escape, significantly reducing the risk of cracking.

3. Restoration of Mechanical Properties

The high temperatures of welding can alter the microstructure of the material in and around the weld zone, commonly referred to as the heat-affected zone (HAZ). This alteration can result in increased brittleness, decreased ductility, or reduced toughness. Post-weld heat treatment helps restore these mechanical properties by refining the microstructure, balancing hardness and toughness, and ensuring the material can withstand operational demands.

4. Reduction of Distortion

Welding-induced thermal stresses can cause warping or distortion of components, especially in large or intricate structures. Pre and post weld heat treatment minimizes these distortions by equalizing the internal stresses, enabling the component to maintain its dimensional stability and alignment.

5. Improved Corrosion Resistance

Some materials, particularly stainless steels, can experience sensitization during welding—a process where chromium carbides form at grain boundaries, reducing corrosion resistance. Heat treatment, such as solution annealing heat treatment, dissolves these carbides, enhancing the material’s resistance to corrosion and extending its service life in demanding environments.

6. Enhanced Weld Metal Toughness

Welded joints are often the weakest link in a structure due to the potential for inclusions, porosity, or other imperfections. Pre and post weld heat treatment processes like tempering or normalizing refine the microstructure of the weld metal, improving toughness and reducing the likelihood of brittle fracture under dynamic or impact loading conditions.

When Is Post-Weld Heat Treatment Used?

Heat treatment after welding is essential in scenarios where operational demands, material properties, or regulatory compliance necessitate enhanced weld performance. By addressing residual stresses, refining microstructures, and improving overall integrity, PWHT post-weld heat treatment that welded components can endure the most challenging conditions with safety and reliability.

Pressure Vessels and Boilers

Post-weld heat treatment (PWHT) is critical for managing the extreme pressures and temperatures encountered in industries like power generation, petrochemicals, and refining. By reducing residual stresses, enhancing mechanical properties, and preventing stress corrosion cracking, PWHT ensures these components meet stringent ASME PWHT requirements.

Pipelines

Post-weld heat treatment plays a vital role in maintaining the structural integrity of welds in pipelines used for transporting oil, gas, and water across long distances. It minimizes the risk of brittle fracture and hydrogen-induced cracking, which is especially crucial in high-consequence areas (HCAs) where failures can have significant environmental and safety impacts.

Heavy Machinery and Structural Steel

In industries such as mining, construction, and shipbuilding, heat treatment after welding is essential for ensuring the reliability of heavy machinery and structural steel. This process helps prevent premature failure by ensuring uniform mechanical properties, reducing distortion, and increasing the fatigue life of welded joints under heavy loads.

Aerospace and Automotive Components

Welded components in the aerospace and automotive industries are often subjected to high stresses, dynamic loads, and fatigue conditions. Pre and post heat treatment processes like tempering and normalizing refine the microstructure of the weld zone, improving toughness and resistance to cracking in these precision-engineered parts. Solution annealing of stainless steel improves resistance to corrosion and stress.

Storage Tanks and Process Equipment

Post-weld heat treatment is crucial for preventing corrosion and ensuring structural stability in storage tanks and process equipment exposed to hazardous substances like chemicals and fuels. By dissolving harmful carbides in stainless steels and balancing hardness in alloy steels, PWHT enhances resistance to corrosion and stress.

High-temperature or High-Pressure Systems

Systems such as heat exchangers and reactors operate under demanding high-temperature and high-pressure conditions. Heat treatment prepares these materials to withstand creep, thermal cycling, and other operational stresses, ensuring their long-term performance and reliability.

Code-Mandated Applications

Industry standards and regulations often require PWHT to ensure the safety and reliability of welded components. Standards such as API 650 for storage tanks and ASME B31.3 for process piping mandate heat treatment as a compliance measure to guarantee the performance of critical infrastructure.

Critical Repairs and Retrofitting

When repairing or retrofitting damaged or aging welded components, post weld heat treatment restores structural integrity and aligns the properties of the repaired area with the original material. By alleviating residual stresses introduced during the repair process, heat treatment ensures the durability of the repaired component.

What is the temperature required for post-weld heat treatment?

The temperature used for post-weld heat treatment (PWHT) varies basd on the type of metal being treated. Because the goal is to optimzie the metal’s physical properties, the exact temperature is selected for how the metal respondes to residual stresses, allowing the treatment to enhance the weld’s perfornce without compromising its performance.

Careful temperature control, such as in TEAM’s PWHT furnace setups, ensures compliance with standards like ASME PWHT requirements and prevents over- or under-tempering.

To learn more, check out our article Heat Treatment Processes for Different Metals.

Carbon Steels

• Temperature Range: 1,100°F to 1,400°F (593°C to 760°C).
• Purpose: At this range, PWHT reduces residual stresses caused by welding, improves toughness, and enhances the ductility of the weld and surrounding heat-affected zone (HAZ).
• Considerations: Careful control is required to prevent grain coarsening, which can weaken the material.

Low-Alloy Steels

• Temperature Range: 1,200°F to 1,600°F (650°C to 870°C).
• Purpose: The specific temperature depends on the alloy’s composition and is chosen to maximize stress relief while maintaining the material’s mechanical strength and hardness.
• Applications: These steels are commonly used in pressure vessels, pipelines, and structural applications where durability and toughness are critical.

Stainless Steels

• Temperature Range: Highly variable based on the specific grade:
  • Austenitic Stainless Steels: 900°F to 1,500°F (482°C to 815°C).
  • Purpose: PWHT is used to mitigate residual stresses, improve toughness, and enhance resistance to stress corrosion cracking.
  • Considerations: Overheating can lead to carbide precipitation, which increases susceptibility to intergranular corrosion.
  • Ferritic and Martensitic Stainless Steels: These steels require careful selection of temperatures to balance strength and ductility while preventing grain boundary embrittlement.

Why is temperature control across varying metals important?

Precise temperature control during PWHT is crucial to achieving optimal results and avoiding adverse effects. Over-tempering can weaken the metal by reducing its strength and hardness, while under-tempering may leave residual stresses unresolved, increasing the risk of weld failure. Controlled heating and cooling rates are essential to prevent thermal shock, distortion, or uneven stress relief, ensuring the integrity and performance of the weld.

How Does Post-Weld Heat Treatment Work?

Post-weld heat treatment (PWHT) is a carefully orchestrated process that transforms welded components into stronger, more resilient structures. By relieving residual stresses and refining microstructures, PWHT enhances both the mechanical properties and overall performance of the material. This transformation unfolds across three critical stages:

Controlled Heating

The component is gradually heated to the target temperature to ensure uniform thermal distribution. This gradual heating minimizes thermal gradients that can create new stresses or distortions in the weld or heat-affected zone.

Soaking at Target Temperature

Once the desired temperature is reached, the component is held, or “soaked,” at that temperature for a predetermined period. The soaking time is tailored based on the material type, thickness, and specific treatment objectives. This stage allows for the relaxation of residual stresses and promotes beneficial microstructural changes.

Controlled Cooling

The component is then cooled at a controlled rate to prevent the formation of new stresses or structural defects. The cooling process may vary depending on the material and the desired properties, such as toughness, ductility, or corrosion resistance.

• Onsite and Offsite Services: TEAM offers flexibility with portable onsite setups or advanced offsite facilities, catering to diverse project requirements.
• Learn more about on-site or off-site heat treatment and find out which is best for your applications in our blog.

Leading the Industry in Heat Treatment Excellence

PWHT ensures your equipment can withstand the most demanding operational challenges. TEAM’s comprehensive expertise in solution annealing, PWHT post-weld heat treatment, and compliance with ASME PWHT requirements positions us as an industry leader in delivering consistent, reliable results.

With advanced PWHT furnace setups, state-of-the-art technology, and a commitment to precision, TEAM offers tailored solutions that meet your unique project requirements—whether it’s pre and post heat treatment in welding or specialized processes like solution annealing of stainless steel. Our portable onsite and offsite capabilities provide the flexibility to support your operations wherever they are needed.
